The Stylist AR App. All assets were created by me and optimised for Mobile AR. This promotional piece is using the mobile assets but with special effects not in the mobile app such as the volumetric light, motion blur and lens flare, this is due to mobile performance.

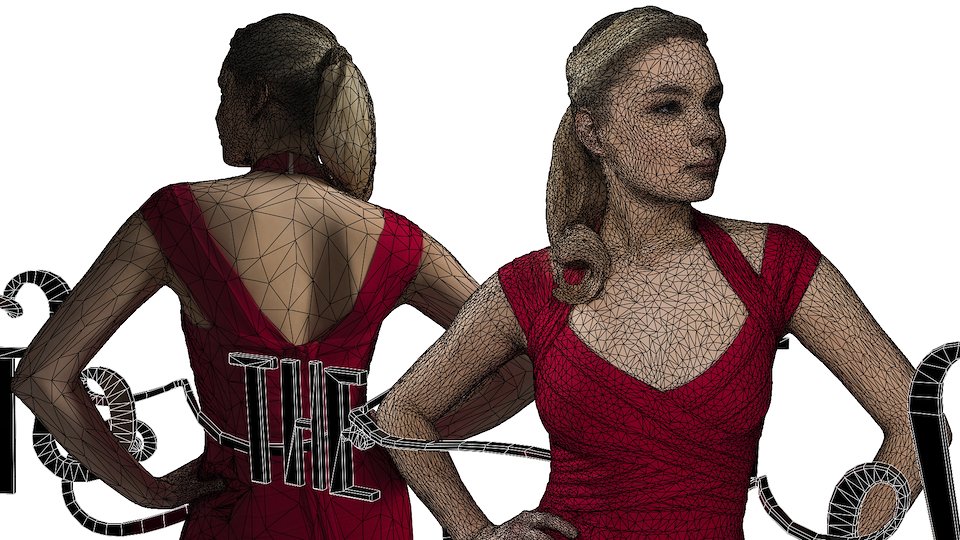

The Stylist 59727 Triangles. This was created using Photogrammetry and then optimised for mobile. I did the processing of the photogrammetry data, geo cleanup, UV’s and texture cleanup. This was shot using artistic lighting so all lighting is baked into the texture.

The Stylist 59727 Triangles. This was created using Photogrammetry and then optimised for mobile. I did the processing of the photogrammetry data, geo cleanup, UV’s and texture cleanup. This was shot using artistic lighting so all lighting is baked into the texture.

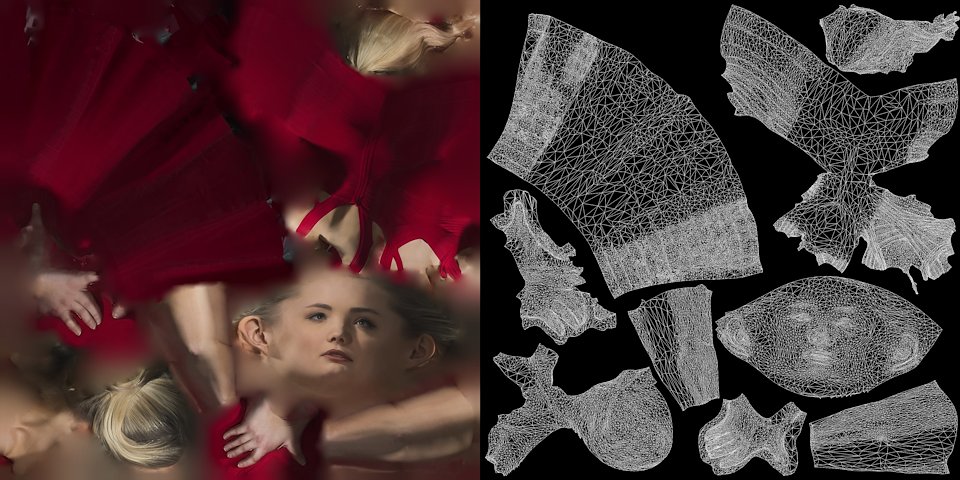

The Stylist UV Map. This UV was generated from the decimated photogrammetry Mesh

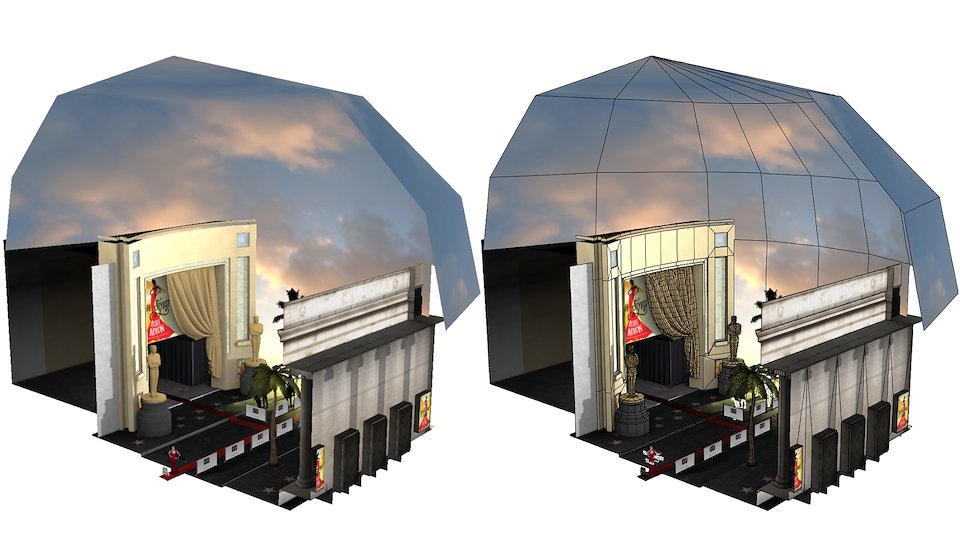

Everything shown is with flat lighting, all lighting information is baked into the textures. The Statue and any metallic objects shown here is displayed flat but has a metallic material in engine/app

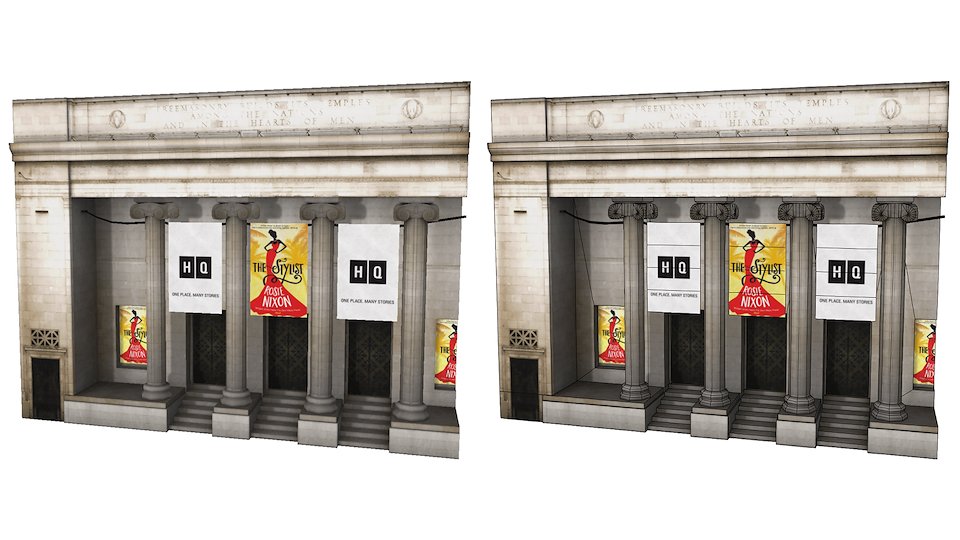

Temple 2546 Triangles

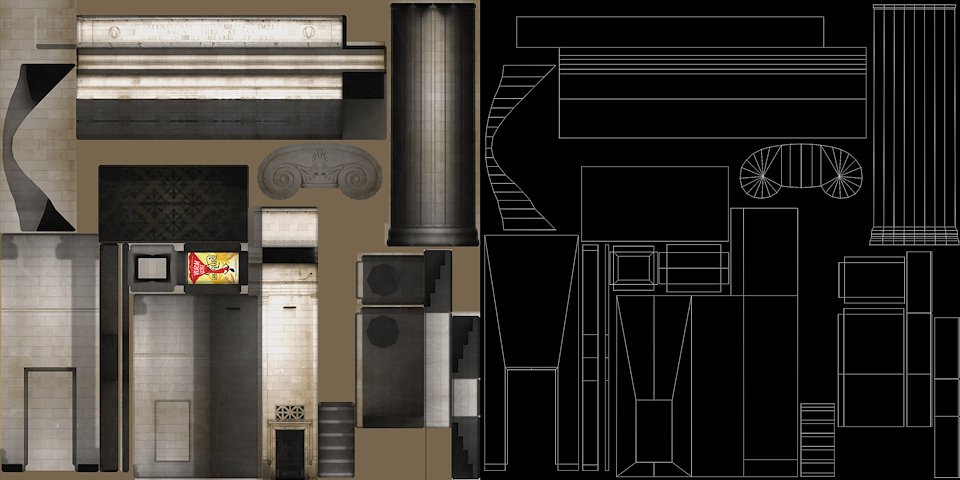

Temple UV Map

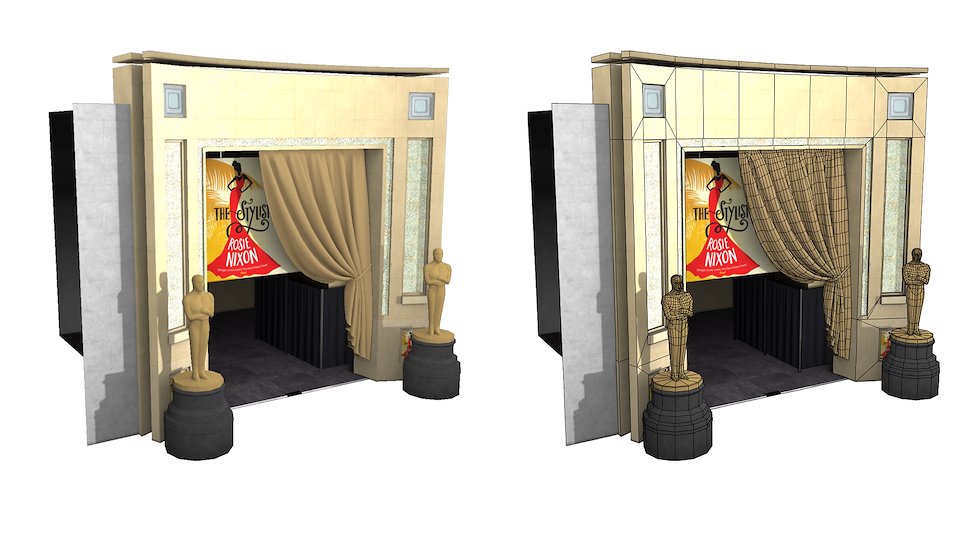

Theatre 3844 Triangles excluding the Oscar statues

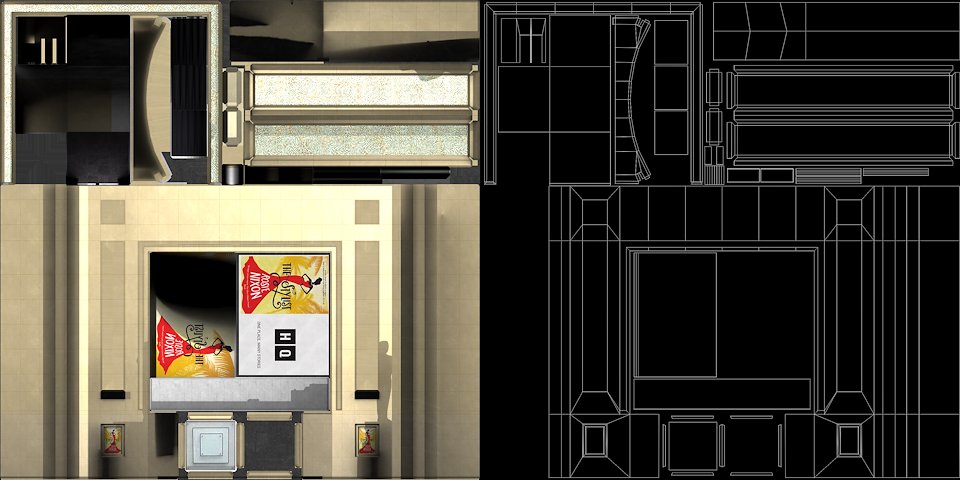

Theatre UV Map

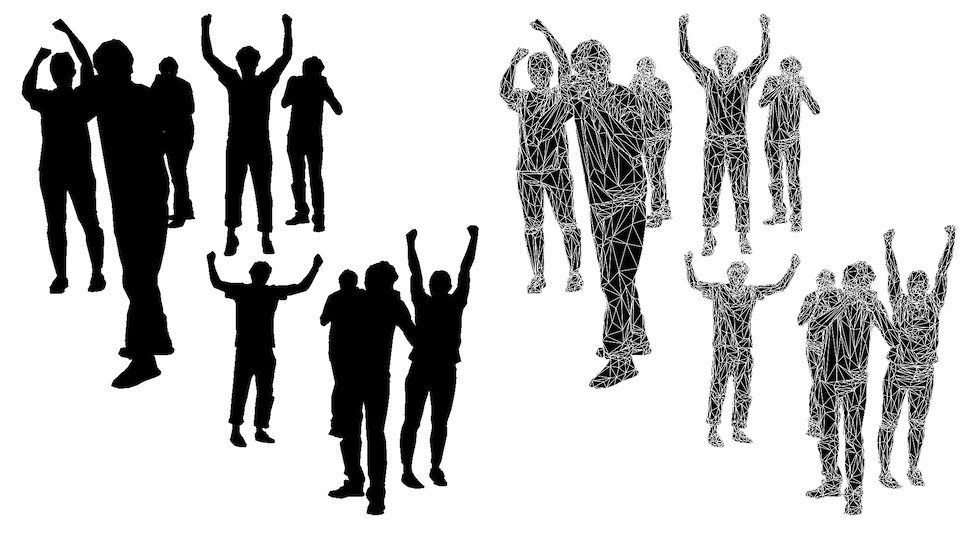

Crowd Meshes, I decided to use very sparse meshes instead of billboard textures as the ground plane had baked shadows of the crowd which matched their position with depth. The back areas of these meshes were carefully deleted

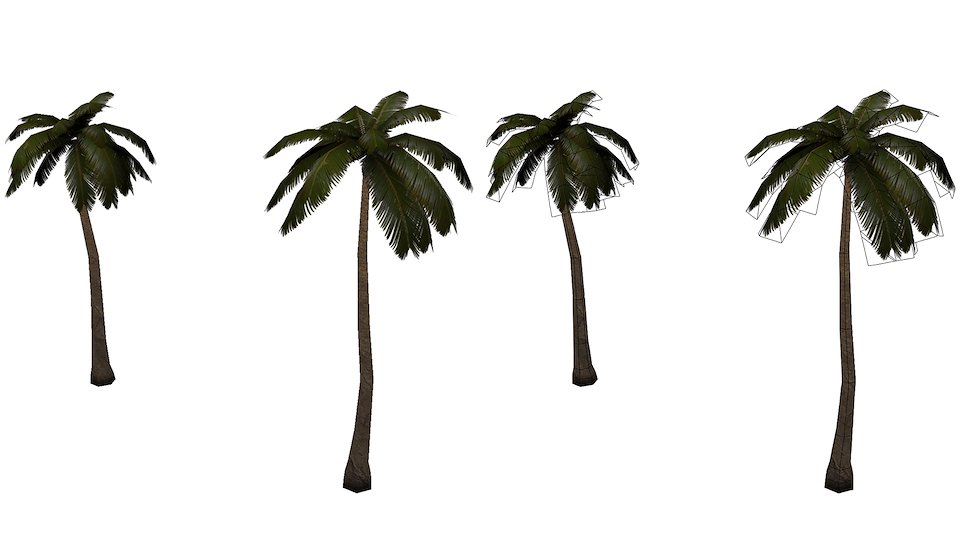

Palm Tree 722 Triangles each

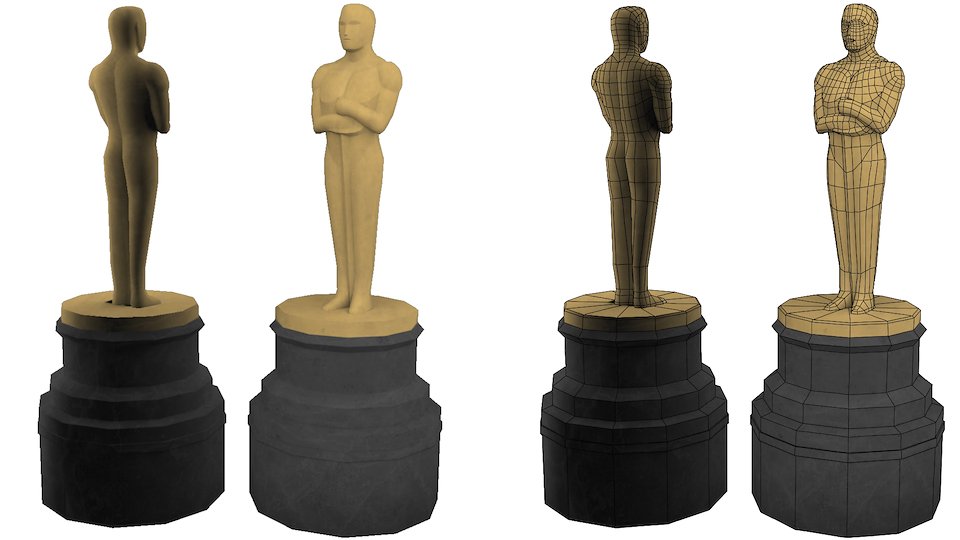

Statue 2082 Triangles each

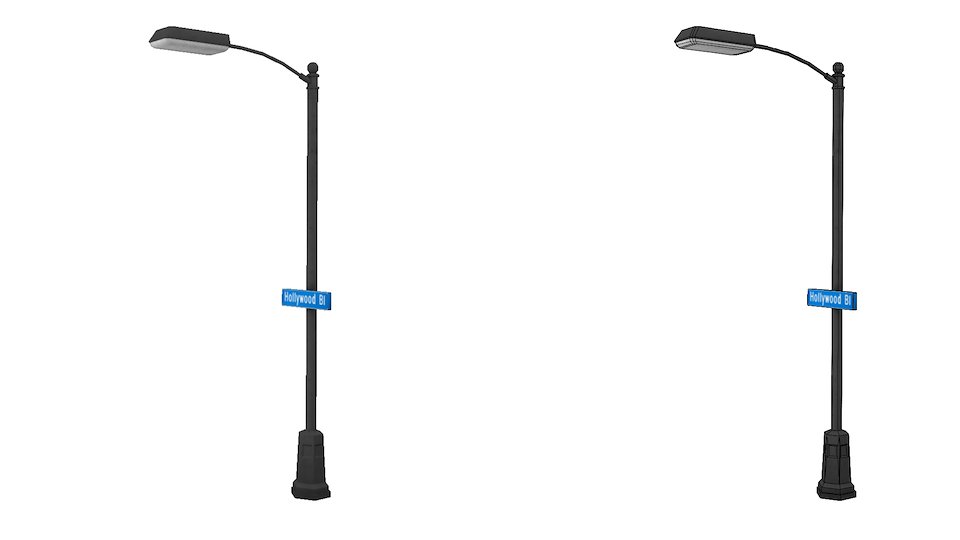

Lamp 573 Triangles

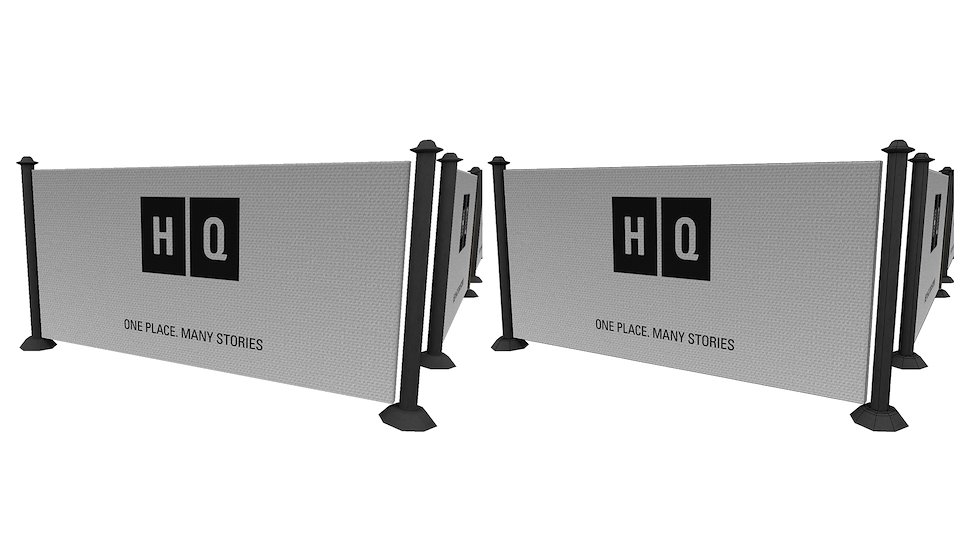

Board 256 Triangles each

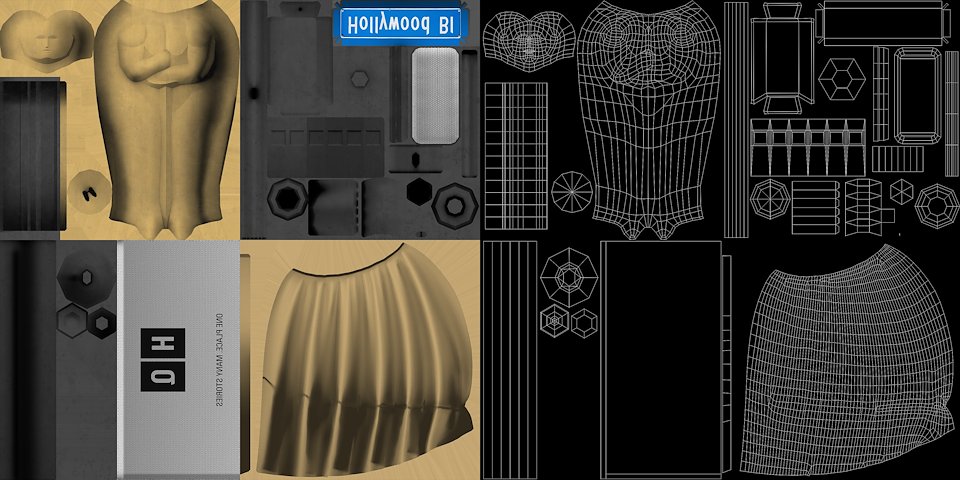

Lamp, Statue, board and curtain UV Map

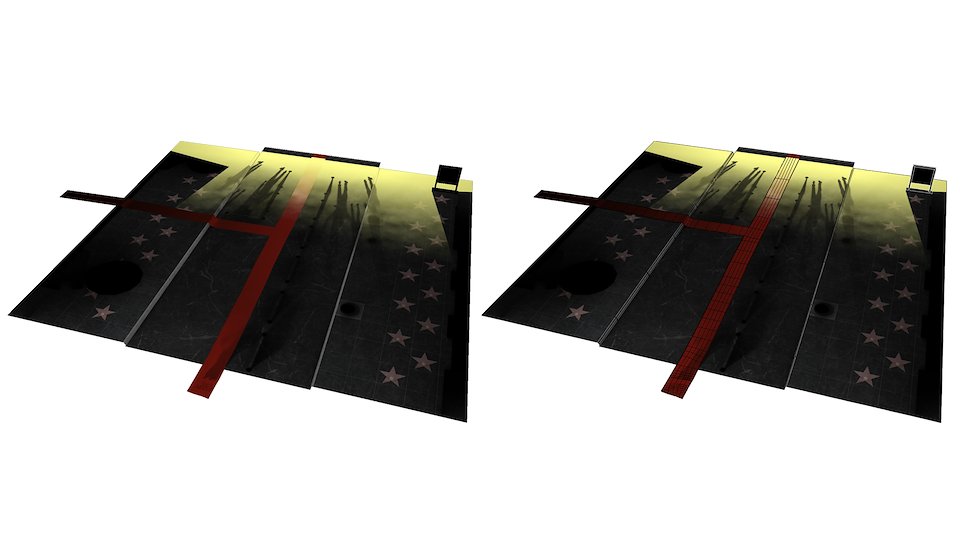

Ground plane and Red Carpet 820 Triangles

Ground plane UV Map

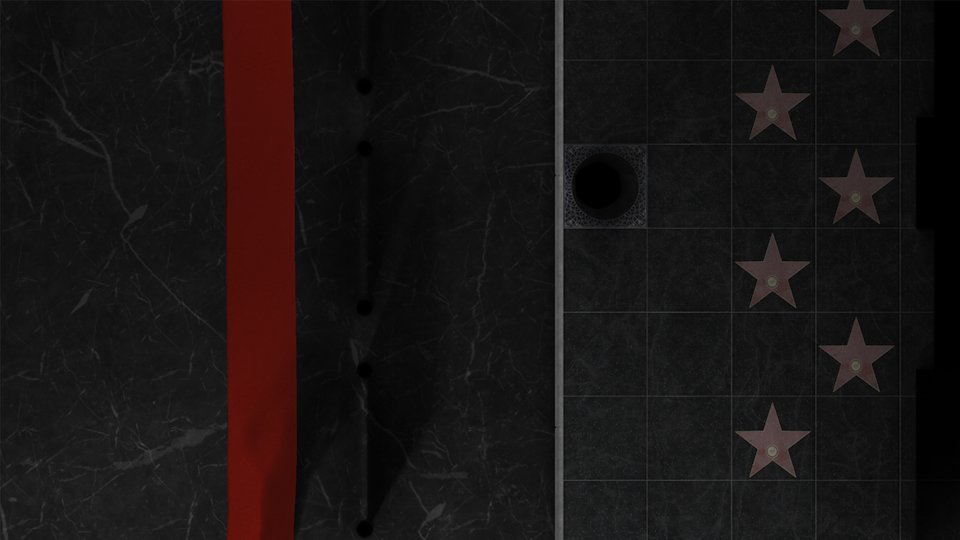

Ground plane closeup detail

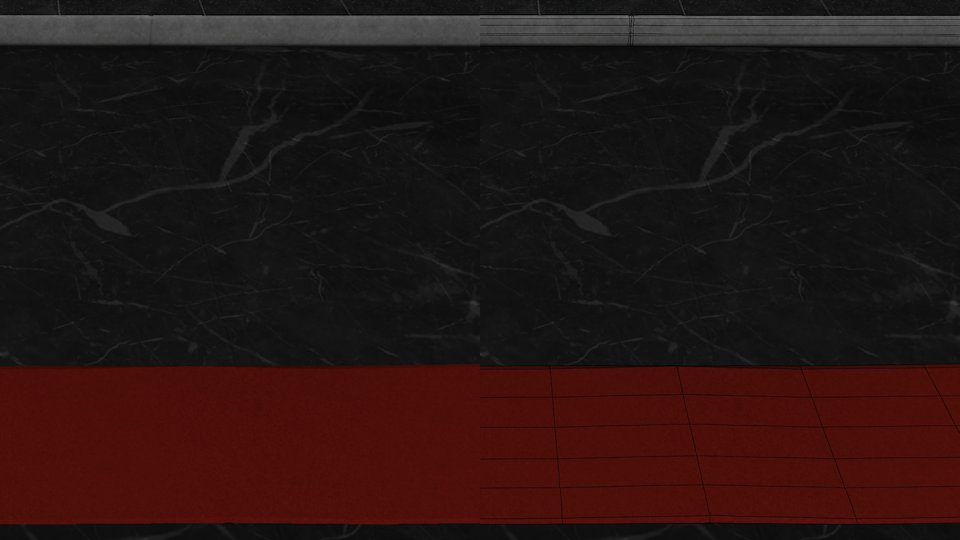

Side of pavement 416 Triangles

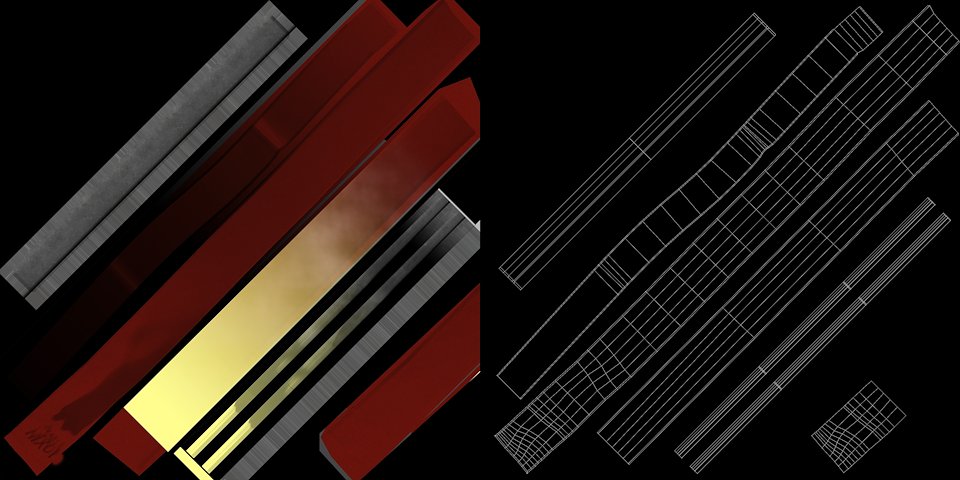

Red Carpet and side of Pavement UV Map

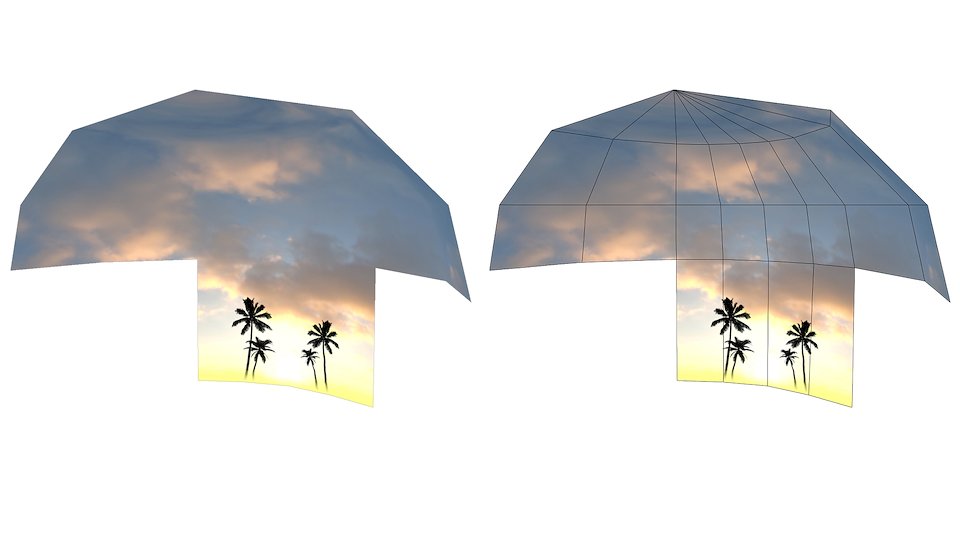

Skybox 48 Triangles

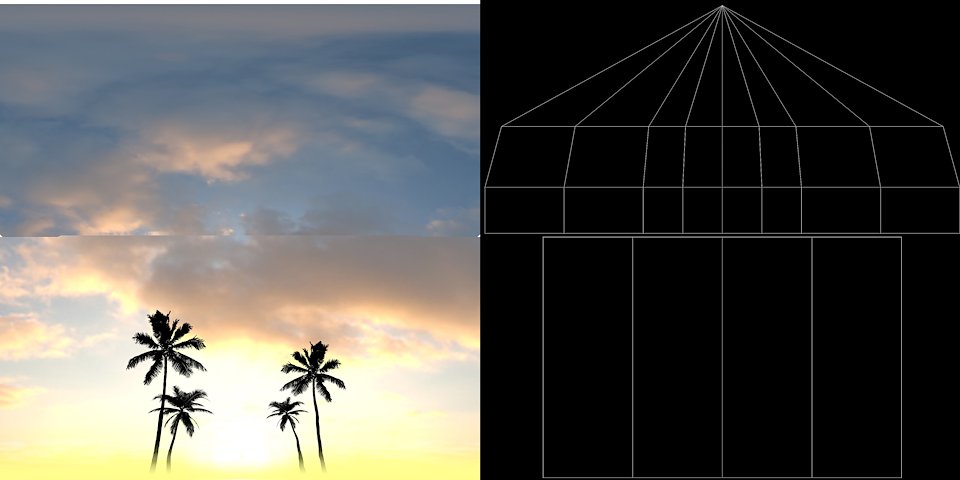

Skybox UV Map

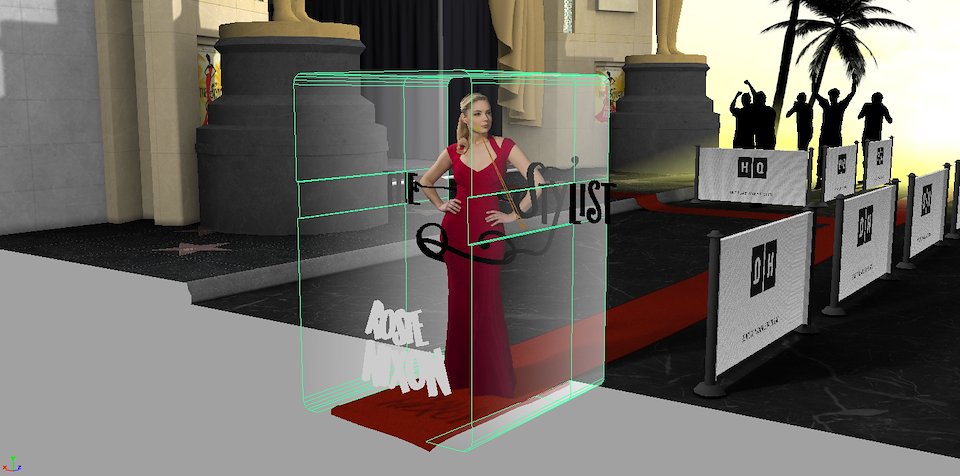

This mesh was used as a mobile realtime lightshaft

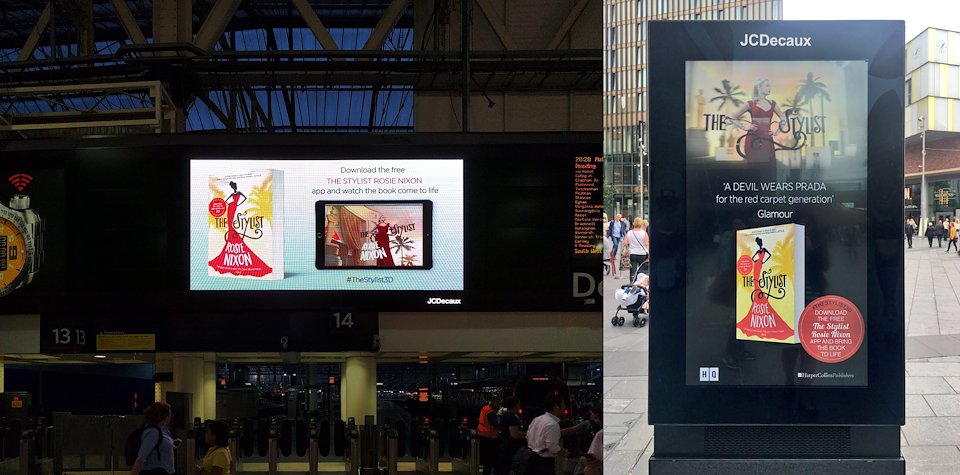

Displayed at Waterloo Station and in Manchester
